KA-159

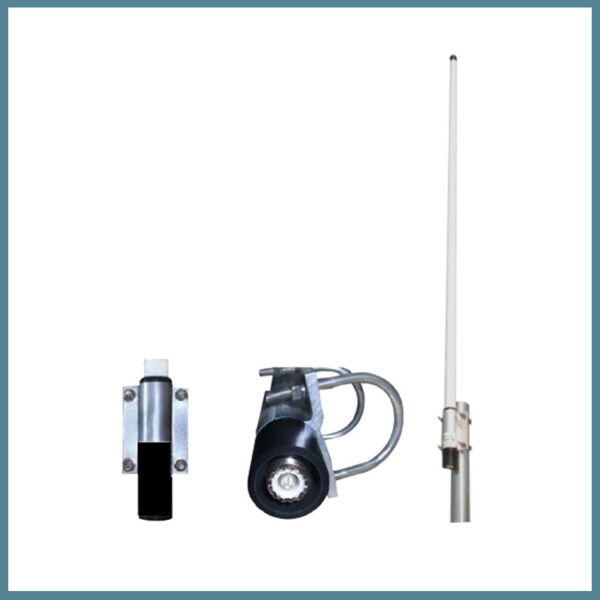

1.2m VHF Antenna

Brochures And Manuals



Feature

  • 1.2m VHF Antenna
    (Optional:10 meters cable with two side PL259 connector)
  • Easy to install with pole mount or can mount antenna directly on boat with self tap
    screws.



Specifications

 Electrical Specifications

Frequency Range
156-163 MHz
Impedance
50 ohm
VSWR
<1.5:1 at 159.5 MHz
Gain
3.5dBi
Polarization
Vertical
Maximum Power Input-watts
100W
Horizontal Beam Width
360º
Vertical Beam Width
52º
Lightning Protection
Direct Ground



 Mechanical Specifications

Dimensions
Ø29×1170 mm
Radome Material
Fiber Glass
Color
White
Material of Hardware-supplied
Aluminum Alloy
Hold Pole Diameter
Ø30~Ø40 mm
Connector
SO239
Weight
570g
