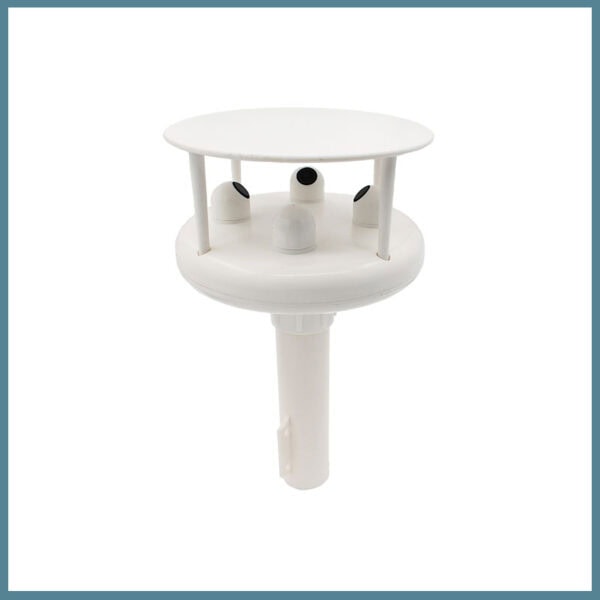

KW-360

Ultrasonic Weather Station/ Anemometer

Feature

KW-360 is a powerful light-weight product that Measures wind speed & direction, temperature, humidity, air pressure and altitude.
    • No calibration needed
    • Two electrical output, RS485 and RS232
    • Configurable baud rate up to 38400 (4800, 9600, 19200 and 38400)
    • Standard NMEA sentences output, $MWV and $XDR
    • Can be used in PC with supplied PC software
    • Can be used for Land Applications with ONWA Weather software
    • No moving parts, does not need constant maintenance
    • Every channel output is isolated
    • Wide operating voltage range from 10.5 V DC to 40.5 V DC
    • Support Modbus protocol for industry use
    • Support MDA sentence- Meteorological Composite (obsolete)

Specifications

 Wind Speed

Range
0~40m/s
Precision
±2% (at 12m/s)
Resolution
0.01 m/s
Measurement Unit
m/s



 Wind

Range
0~359.9°
Resolution
0.1°



 Temperature

Temperature Measurement Range
-20°C~+75°C
Temperature Measurement Accuracy
±0.5°C (at 12m/s)
Temperature Resolution
0.1°C
Measurement Unit
°C



 Humidity

Humidity Measurement Range
10%~99.9%
Humidity Measurement Accuracy
±2%RH (25°C)
Humidity Resolution
0.1%RH



 Pressure

Measurement Unit
Pa
Measurement Range
30000~ 110000 Pa



 Altitude

Measurement Unit
m
Measurement Range
+9000m~ 0m



 Communication Format

Hardware Interface
RS232, RS485
Baud Rate
4800, 9600, 19200, 38400



 Working Environment

Waterproof Grade
IP65
Working Temperature
20°C~ +75°C
Storage Temperature
-30°C~ +80°C
Working Humidity
<5%~100%
Electromagnetic Compatibility
IEC60945
Input Source
10.5 VDC ~ 40.5 VDC



 Mechanical Properties

Size/Weight
165x165x140 (LxWxH)mm <1 kg



Dimensions
