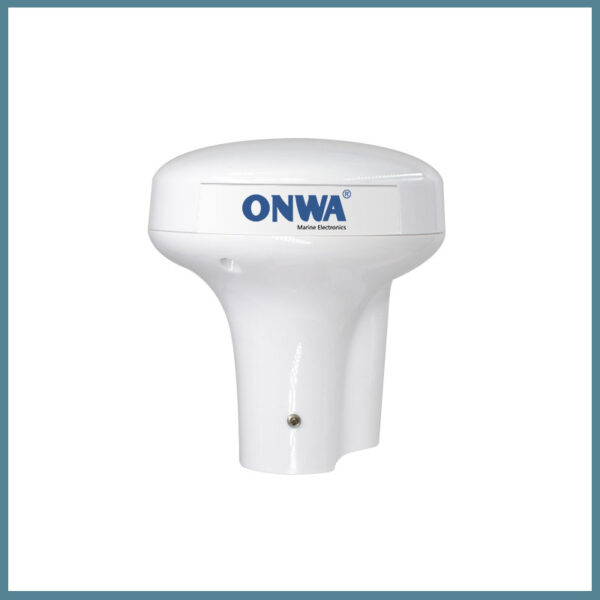

KA-GC9A (NEW)
9-Axis Electronic Compass Heading Sensor with built-in High-accuracy GPS Module
KEY FEATURES
- Low power consumption, 450mW
- Power supply : 5V-32V, reverse polarity protected
- Embedded firmware upgrade through proprietary NMEA messages
- Runtime user calibration
- 9 axis inertial measurement unit (IMU) magnetometers, accelerometers & gyroscopes datafusing with proprietary algorithm
- Windows graphical user interface (9 axis E-Compass Manager) for easy setup, monitoring and upgrades
When you turn over the KA-GC9A you can see an arrow sign on the antennabase. Please make sure this arrow should point exactly to the BOW direction.
Example: Connect KA-GC9A to ONWA KP-27X
 INTERFACE (NMEA0183 VER 2.0) |  |
Baudrate | 4800/9600/19200/38400 Selectable |
Output Sentences | GPRMC, GPGSA, GPGLL, GPZDA, GPVTG, GPHDT(5Hz) |
Electrical | RS422, 18KV ESD |
Power Supply | 5V-32V, Over-voltage and reverse polarity protected |
User-Interface | Uses 9-Axis E-compass Manager |
IMU(Inertial Measurement Unit) | 9-Axis(Features a GPS/Glonass receiver coupled with a 9-axis AHRS unit providing 3D orientation by integrating gyroscopes and data fusing with accelerometers and magnetometers) |
Equipment List | KA-GC9A with 10m cable 1set |
Main unit |  |
one flat base |  |
Four long screws  (TA5-20) |     |
two short screws  (ST4-6) |  |
two screw buckles |  |
one wire thread buckle |  |
one Sealing plug |  |
a wrench |  |
