KEY FEATURES

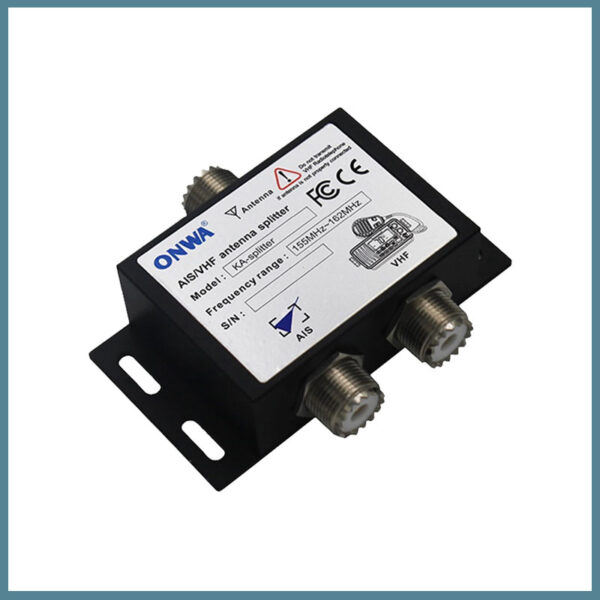

KA-spliter is an antenna spliter specially designed
for sharing an antenna with an AlS transponder
(transmiter and receiver) or an AlS receiver device
and a VHF radiotelephone onboard. KA-spliter is a
passive device so no power supplyis needed.
Electrical Specifications | |
Frequency | 150 ~ 170MHz |
Split Loss (dB) | 3.0 |
Insertion Loss (dB) | ≤ 0.5 |
Isolation (dB) | ≥ 20 |
VSWR @ all port | ≤ 1.2 |
Average Power, max (W) | 50 |
Impedance (ohm) | 50 |
Mechanical Specifications | |
Dimension (L x W x H, in/mm) | 2.95 x 3.74 x 1.06/75 x 95 x 27 |
Weight (lb/kg) | 0.4/0.2 |
Connector Type | PL259 female |
Environment Specifications | |
Operating Temperature | -25°C to +85°C |
Environment | IP65 |
Relative Humidity | Up to 100% |
