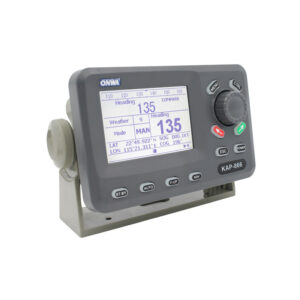

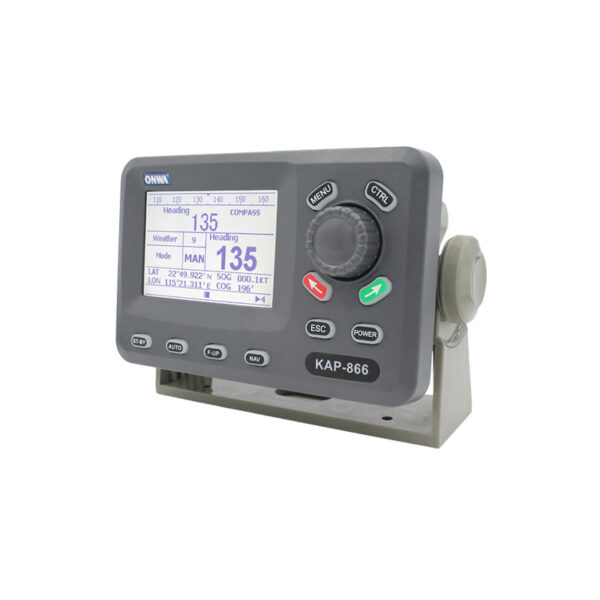

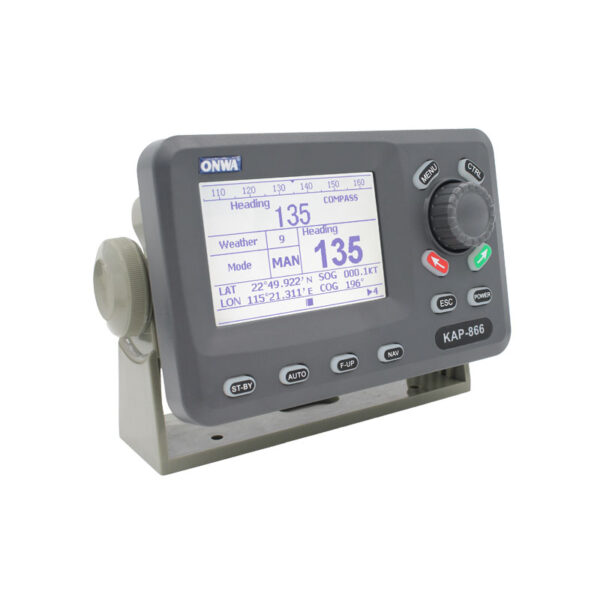

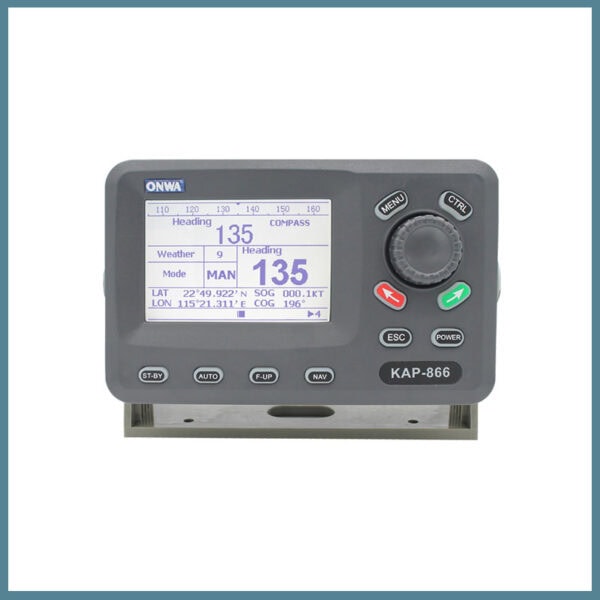

KAP-866 Autopilot System
Smooth Sailing with ONWA KAP-866 Autopilot System
NAVIGATE WITH GPS; FOR DIFFERENT VESSEL SIZE; MULTIPLE ALARM FUNCTION
KEY FEATURES
- No more “Rudder” and “Counter Rudder” adjustment is needed
- Automatic calculation againstWind and Currenton sea (Auto Trim)
- Comeswith high accuracy 9-axis electronic heading and GPS sensor
- Applies the most advance PID controller (proportional-integral-deivative controller)
- Suitable for most kind and size of vessels
- Real tme GPS information display (LonLat, SOG and coG)
- Steeryour boat in almost a straight line in any weather condition
APPLICATIONS OF KAP-866
- Merchant shipping. Autopilot is suitable for cargo transportation, allowing automatic control of the vessel, facilitating the crew’s work.
- Tourist transportation. The device allows you to accurately adhere to the specified course, and also, if necessary, smoothly and accurately change it.
- River shipping. Autopilot increases the maneuverability of the vessel, which is especially important in the conditions of a narrow port, in difficult weather conditions on river waters
DISPLAY MODE
![Weixin Screenshot 20240624154400](https://onwamarine.com/wp-content/uploads/2024/06/Weixin-Screenshot_20240624154400.jpg)
CONTROLS FEATURE
![Weixin Screenshot 20240624154308](https://onwamarine.com/wp-content/uploads/2024/06/Weixin-Screenshot_20240624154308.jpg)
ACESSORIES
![7 1](https://onwamarine.com/wp-content/uploads/2024/06/7-1-300x300.jpg)
KA-CG9A(STANDARD)
![9 1](https://onwamarine.com/wp-content/uploads/2024/06/9-1-300x300.jpg)
KRF-36(STANDARD)
![1 7](https://onwamarine.com/wp-content/uploads/2024/06/1-7-300x300.jpg)
KCs-20_0183
![2 5](https://onwamarine.com/wp-content/uploads/2024/06/2-5-300x300.jpg)
KRI-80
![RT 580](https://onwamarine.com/wp-content/uploads/2024/06/RT-580-300x300.jpg)
RT-580
![KW 250](https://onwamarine.com/wp-content/uploads/2024/06/KW-250-300x300.jpg)
KW-250
![5 2](https://onwamarine.com/wp-content/uploads/2024/06/5-2-300x300.jpg)
KGN-200
![6 1](https://onwamarine.com/wp-content/uploads/2024/06/6-1-300x300.jpg)
KRF-35
Dimensions
![ljt KAP 866](https://onwamarine.com/wp-content/uploads/2024/06/ljt-KAP-866.jpg)
General |
|
HEADING REFERENCE: | Fluxgate, Magnetic Compass, NMEA |
HEADING SENSOR: | KA-GC9A (Standard), KFG-25 and KCS-20 (optional) |
HEADING RESOLUTION: | 1° |
COURSE DETECTION: | 0.1° |
Output/ Input (IEC61162) |
|
INPUT | Dual NMEA0183 Inputs |
OUTPUT | One NMEA0183 output |
Environmental Conditions |
|
Ambient Temperature | -15°C~70°C |
Waterproofing | Display Unit: IPX5 |
Display |
|
| Sunlight |
| LCD |
Electrical Parameters |
|
Operating Voltage: | 10 to 30VDC |
Drive Output: | 10 Amps max |
Power Consumption: | Standby mode 0.4 Amps, Auto mode, 1.0 Amps Peak for control unit only. |
