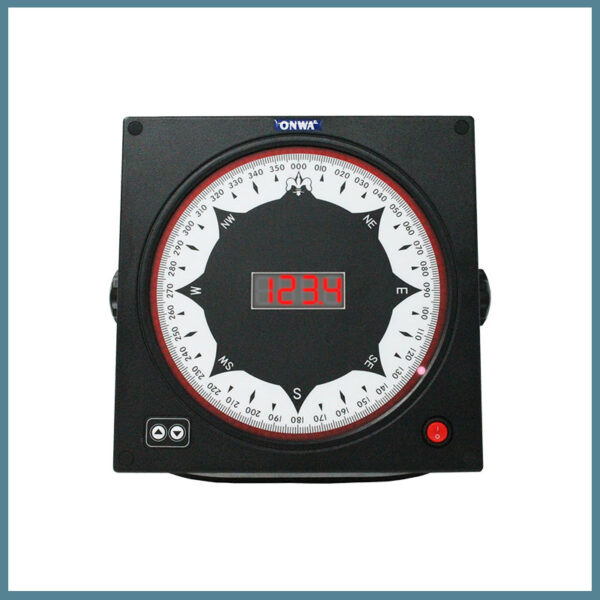

KCR-160S (New!)

Total Solution Marine Electronic Compass



Feature

  • Total solution marine electronic compass
  • 4 Digit LED Heading Display readout
  • Analog heading indication by a rotating LED light.
  • Accuracy up to +/-0.1 degree
  • Provides 2 NMEA0183 heading outputs
  • Electrical interface of output ports supports RS232, RS422 and RS485
  • Wide range power supply 9V~32VDC
  • Reverse power polarity protection
  • Easy installation



Connection

160s connection

Specifications

Specification

Dimension:
200 mm x 200 mm x 27mm
Weight
1.2 kg
Compass Safe Distance
1 m
Waterproof
IP66
Working Temperature
-20℃ to +70℃
Humidity
lower than 95%
Scale Accuracy
1.5°
Digital Display Accuracy
± 0.2°
Track Rate
45°/s
Power Supply
9V – 36VDC, 0.20A at 24VDC
Input Data
RS-422, RS-485 or RS-232
Output Data
RS-422, RS-485, RS-232
Input Data Format
NMEA 0183(HDT or HDM), baudrate : 4800,no priority,1 stop bit
Output Data Format
AD-10 and NMEA 0183(HDT), baudrate : 4800,no priority,1 stop bit



Dimensions
