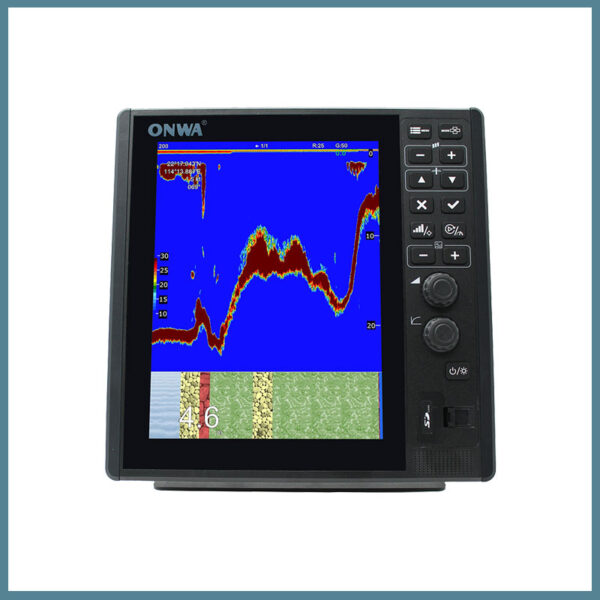

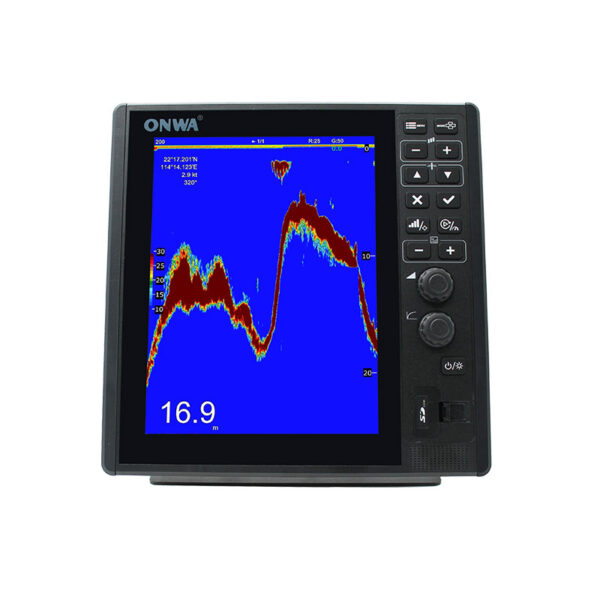

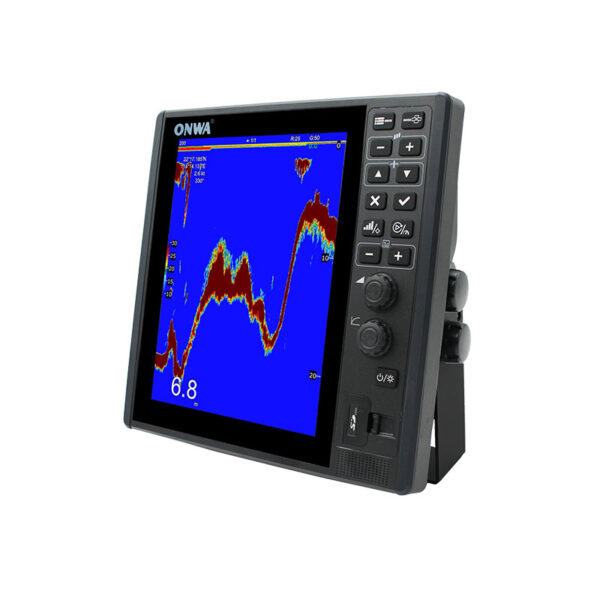

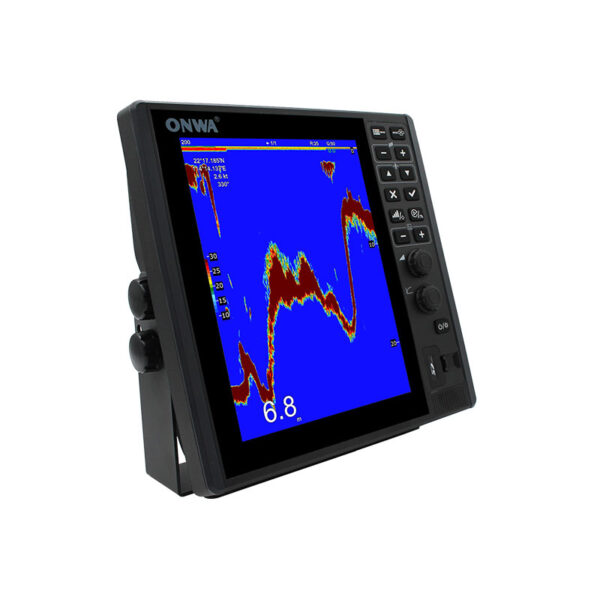

KFISH-12 Fishfinder

12-inch Color Digital Fish Finder

FOR LEISURE AND FISHERY

KEY FEATURES

12-Inch High-Resolution Display
Powered by 1kW or 2kW Transceiver
Advanced Sonar Technology (Dual-frequency 50 kHz and 200kHz）
Durable and Waterproof Design
User-Friendly Interface

TRANSDUCER OPTIONS

DISPLAY FEATURE

Dimensions

General

Display

12.1-inch Color TFT LCD

Echo Color

16 colors (including background color) according to echo intensity.
The background color is selectable from blue, light blue, white and black

Basic Range

Meters 5/10/20/40/80/150/300/600/1000/2000
Feet 15/30/60/120/200/400/1000/2000/3000/6000
Fathoms 3/5/10/20/40/80/150/300/600/1000
Passi/Braza 3/5/20/40/80/160/350/600/1000
*The basic ranges can be changed on the system menu.

Range Shift

Up to 1000 meters (3000 feet, 600 fathoms, 600 passi/braza)

Zoom Range

Times 2,3,4 and 6 ranges

Bottom Lock Expansion Range

5/10 /20 meters, 10/20/40 feet, 2/5/10 fathoms , 2/5/10 passi/braza

Auto Mode

Automatic adjustment of range and gain

Display Mode

High Frequency (200K),
Low Frequency (50K),
Zoom (200K and 50K zoom) and
A-scope Display

Zoom Display

Marker Zoom,
Bottom Zoom and
Bottom-lock Expansion

Display Advance Speed

Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1

TX Frequency

50 and 200 kHz (Dual Frequency)
**(No Dual Frequency Display Mode)

Power Output

2kW, 2000W RMS

Pulse-length/TX rate

Display End Depth (m)	5	10	20	40	80	150	300	600	1000	2000
Pulse-Length 200K(µs)	100	100	100	200	400	750	1000	1500	3000	5000
Pulse-Length 50K(µs)	100	100	100	200	400	750	1000	1500	3000	5000
TX Rate(pulse/min)	750	750	750	375	188	107	50	30	20	10
TX period(millisecond)	80	80	80	160	320	560	1200	2000	3000	6000

Interference Rejecter

Rejects unwanted signals by comparing last and present echoes in strength.

Alarm

Fish and Bottom alarms,
Temperature alarm (sensor required)

NMEA0183 Sentence Supported

Input: RMA,RMC,GLL,GGA,VTG,ZDA,HEV
Output: SDDBS, SDDBT, SDDPT
POWAB/*only hardness output ONWA format*/
SDSBH/*only hardness output ONWA format*/
PHDX/*only hardness output HONDEX format*/
PKODS/*only hardness output KODEN format*/

NMEA2000 Sentence Supported

Input PGN:126992,129539,129540,129025,129026
129092,129033
Output PGN: 129259,128267

Other Options

HDMI, USB and Ethernet Port (Specify when ordering)

Power Supply

12 – 24 VDC, 2.5A max at 12VDC

Environmental Conditions

Automatic adjustment of range and gain

Ambient Temperature

0°C to +50°C

Relative Humidity

85% at 40°C

Vibration

± 1mm ±10%, 2(5) to 13.2 Hz,
Maximum Acceleration 7m/s^2, 13.2 to 100 Hz

Water proofing

Display unit (Front Panel): IPX7

Transducers

1KW
TGM60-50B-12L (50 kHz, with 12 meters cable )
TGM60-200B-12L (200 kHz, with 12 meters cable )
2KW
TGM60-50A-15L (50 kHz, with 15 meters cable )
TGM60-200A-12L (200 kHz, with 12 meters cable )
