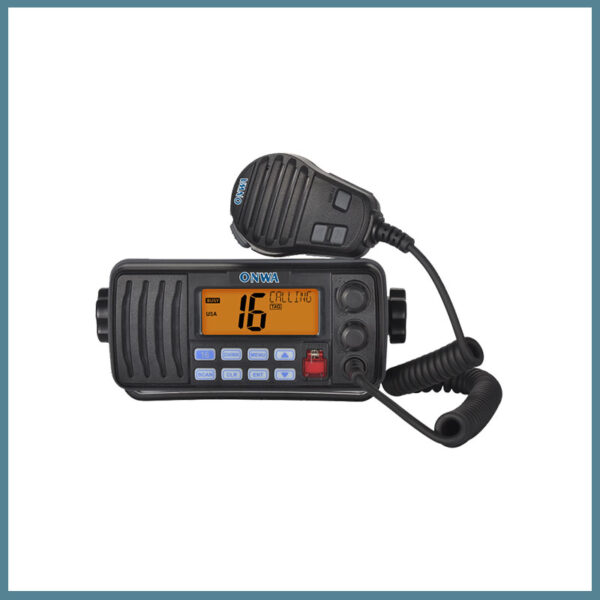

KV-290 VHF/DSC Marine Transceiver
Robust Connectivity with ONWA KV-290 Marine VHF Radio
KEY FEATURES
o ATIS function
o Transmit Power: 25W/1W
o Independent DSC Dedicated Receiver
o Built-in Class D DSC
oIPX7 Waterproof Construction (1 meter depth for 30 minutes)
o Common GPS/NAV Interface
o Vibration Water Draining Function
o Dual/Tri-Watch
o 70 programmable user channels
o Built-in GPS module (option)
o Receives Weather Channel
o Favorite Channel Function
o Extermal Speaker Connection
General |
|
Frequency | TX:156.025-157.425MHz |
Modulation | FM(16K0G3E),DSC(16K0G2B) |
Frequency Stability | ±10ppm |
Operating Voltage | DC13.8V(±15%) |
Operating Temperature | -20℃~+60℃ |
Antenna Impedance | 50Ω |
Dimensions | 165mm×163mm×77mm |
Weight | 920g(Hand MIC Included) |
Transmitter |
|
Output Power | 25W\1W |
Max Frequency Deviation | ±5kHz |
Spurious Emissions | ≤-70dB(H) |
Temperature Range | -20°C to +50°C (-4°F to 120°F) – KV-280 US Only |
Adjacent Channel Power | ≥70dB |
Audio Harmonic Distortion | ≤10% |
Current Consumption | ≤5.5A (H) |
Input Impedance | 2kΩ(MIC) |
Receiver |
|
Receive Sensitivity | ≤0.2μV |
Squelch Sensitivity | ≤0.2μV |
Adjacent Channel Selectivity | ≥70dB |
Spurious Response Rejection Ratio | ≥70dB |
Inter modulation Rejection Ratio | ≥70dB |
Max Receive Current | ≤1.5A |
Audio Output Power | ≤4.5W(10%) |
GPS Signal Format | NMEA0183-2.0or3.01 |
Output Impedance | 4Ω (Speaker) |
Inclusions |
|
Standard Accessories | DC Power Cable |
