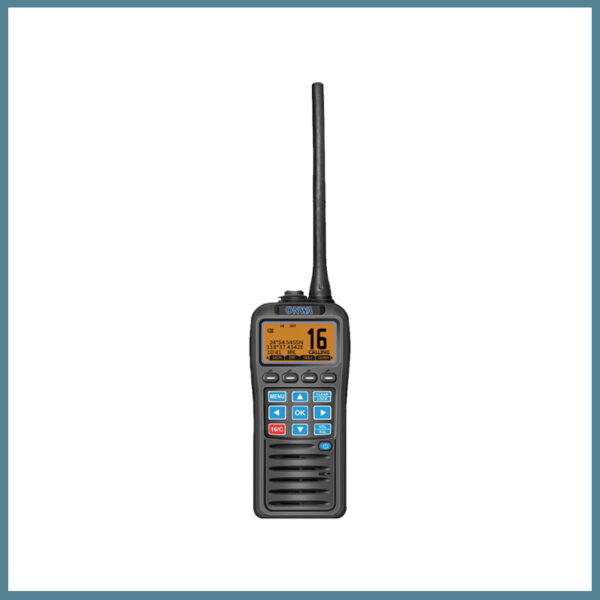

KV-38 Handheld VHF/DSC Marine Transceiver
Uninterrupted Contact with ONWA KV-38 Marine VHF Radio
![3 3](https://onwamarine.com/wp-content/uploads/2024/06/3-3.jpg)
KEY FEATURES
o ATIS function
o Transmit Power: 25W /1W
o Independent DSC Dedicated Receiver
o Built-in Class D DSC
o IPX7 Waterproof Construction
(1 meter depth for 30 minutes)
o Common GPS/NAV Interface
o Vibration Water Draining Function
o Dual/Tri-Watch
o70 programmable user channels
oBultinGPS mouule (option)
o Receives Weather Channel
o Favorite Channel Function
o Extermal Speaker Connection
General |
|
Frequency | TX:156.025-157.425MHz |
Modulation | FM(16K0G3E),DSC(16K0G2B) |
Frequency Stability | ±10ppm |
Battery Pack | DC7.4V,1500 mAh |
Operating Temperature | -15℃~+55℃ |
Dimensions (WxDxH) | 61mm×141mm×43mm |
Weight | 315g(with battery, antenna and belt Clip) |
Waterproof Level | IPX7 |
GPS RECEIVER SPECIFICATIONS(Apply to Long term Tracking (when Signal strength ≥-130dBm, 5 satellites visible) |
|
TIFF Cold Boot | <1 minute |
TIFF Warm Boot | <10 seconds |
Horizontal Position Precision | <10 meters |
Transmitter |
|
Output Power | 5W\1W |
Max Frequency Deviation | ±5kHz |
Spurious Emissions | ≤0.25uW |
Adjacent Channel Power | ≥70dB |
Audio Harmonic Distortion | ≤10% |
Current Drain | ≤ 1.5A (High Power) |
Receiver |
|
Receiver Sensitivity | ≤0.22μV |
Squelch Sensitivity | ≤0.22μV |
Hum and Noise | ≥40dB |
Adjacent Channel Sensitivity | ≥70dB |
Spurious Response Rejection Ratio | ≥70dB |
Inter-modulation Rejection Ratio | ≥68dB |
Audio Output Power | ≥ 0.5 W(10%) |
Inclusions |
|
Accessories | Antenna |
