KW-360_mini
Compact and Efficient KW-360 Mini Ultrasonic Anemometer by ONWA
![IMG 20230330 170833 scaled e1719287258334](https://onwamarine.com/wp-content/uploads/2024/06/IMG_20230330_170833-scaled-e1719287258334.jpg)
KEY FEATURES
1.HIGH ACCURACY SENSOR
Measures wind speed and direction, humidity, temperature, pressure.
2.LOW MAINTENANCE
No moving or wearing parts, does not need constant maintenance, and no need to re-calibrate
3.LOW POWER CONSUMPTION
Low power chip make its power consumption low to 0.2W
4.HOUSING STRUCTURE
ABS shell allows alighter weight and robust structure. Molded in thermoplastic also known as ASA, which has high outdoorweather ability. ASA is extremely resistant against UV radiation of sun, it is frost and heat resistant, standing all climatically conditions.

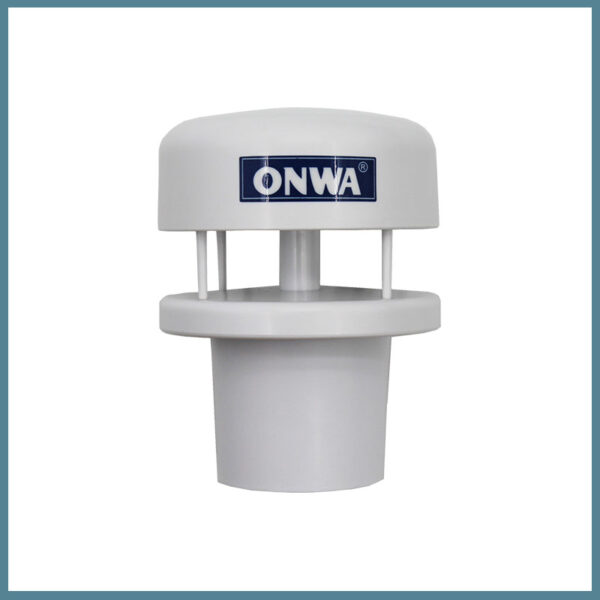

Anemometer KW-360_mini
Anemometer KW-360_mini is a device measuring wind speed, direction, humidity, temperature, air pressure, by ONWA Marine. The body is made of ABS plastic, which ensures lower weight of the equipment, its increased strength.
The KW-360_mini anemometer is made of ASA (formed thermoplastic). ASA allows the equipment to be used in any climatic conditions. The anemometer is resistant to ultraviolet radiation and has high weather resistance.
Application areas:
- Commercial and industrial shipping. The anemometer has no moving parts, which is important for long voyages in difficult operating conditions.
- Commercial shipping. KW-360_mini reads wind direction, speed, humidity and other environmental data to help prevent potential emergencies.
- Small-sized watercraft. Due to its small size, the device is convenient to use on small-sized vessels.
Reasons to buy:
- Low power consumption up to 0.1W
- Low operational wear
- Corrosion protection
- Sensitive and prompt response
- Easy installation
- No recalibration required
- No dead zone – 0-359°
Dimensions
Parameters |
Measure Range
|
Accuracy
|
Resolution
|
Windspeed |
0-40m/s(77 knots)
|
±5%
|
0.1m/s(0.2 knots)
|
Wind Direction |
0-359°
|
±3°
|
1°
|
Temperature |
-40℃ ~ +80℃
|
±0.5℃
|
0.1℃
|
Humidity |
0 ~ 100%
|
±5%
|
1
|
Air Pressure |
150 ~ 1100hPa
|
±1hPa
|
0.1hPa
|
19200, 38400 115200 by supplied PC software)
