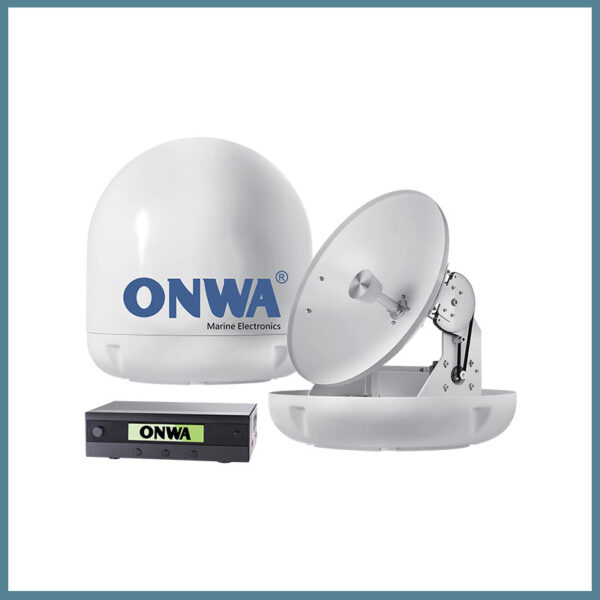

M32 , M45 , M60 Satellite TV Antenna
Seamless Entertainment with ONWA M32, M45, M60 Satellite TV Antennas
Uninterrupted Entertainment with ONWA Marine Satellite TV Antennas
Versatile Antenna Sizes
ONWA offers satellite TV antennas in various sizes—32 cm, 45 cm, and 60 cm—to accommodate different vessel requirements and space constraints. Each size is designed to provide optimal performance and fit seamlessly into your maritime setup.
Global Satellite Coverage
ONWA satellite TV antennas provide extensive coverage, allowing you to receive signals from major satellite TV providers worldwide. This global reach ensures you never miss out on your favorite content, regardless of your location on the water.
Robust and Weather-Resistant
Built to withstand the harshest marine conditions, ONWA antennas feature a rugged, weather-resistant construction. Their durability ensures reliable performance and longevity, providing consistent TV reception regardless of weather challenges.
KEY FEATURES
- Automatic Control System based on GPS/INS
- Built-in GPS enables faster satellite lock within a few seconds
- High Performance Stabilization ensures signal tracking at high speeds in rough seas
- Tri-axis Motorization fully automated control system, includes automatic skew control
- DiSEqC 1.2 Function available (Automatic satellite switching using receiver)
- One-button change target satellite
- Silent type Antenna operation
- Water-resistant flat surface with Drain, sealed onboard Electronics
- Built-in DVB Signal Identification
- Built-in Global Satellite Library
- Real-time Monitoring of Antenna Status
- Upgradable Firmware
Unbelievably Affordable Price
| Model No. | M32 | M45 | M60 |
| Dish Dimension | 32 cm | 45 cm | 60 cm |
| Antenna Dimension | 405x430mm | 520x550mm | 690x700mm |
| Frequency | Ku band | Ku band | Ku band |
| Minimum EIRP | 51 dBW | 49 dbW | 47 dBW |
| Satellite Coverage Regions | Worldwide | Worldwide | Worldwide |
| Skew Control | Manual/Automatic | Manual/Automatic | Manual/Automatic |
| GPS Interface | Yes | Yes | Yes |
| DVB-S2 Compatible | Yes | Yes | Yes |
| LNB Output | Dual | Dual/Quad | Dual/Quad |
| Polarization | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
| Tracking Rate | 60°/sec. | 60°/sec. | 60°/sec. |
| Elevation Range | 0°~+90° | 0°~+90° | 0°~+90° |
| Azimuth Range | 0°~+680° | 0°~+680° | 0°~+680° |
| Skew Range | -90°~+90° | -90°~+90° | -90°~+90° |
| Operation Temperature | -20°~+60° | -20°~+60° | -20°~+60° |
| Storage Temperature | -25°~+80° | -25°~+80° | -25°~+80° |
| Operation Power | DC9~30V(Typ.15W, Max 30W) |
| Humidity Limit | 95% R.H |
| Water Ingress | IPX6 |
| Warranty | 3 years parts |
