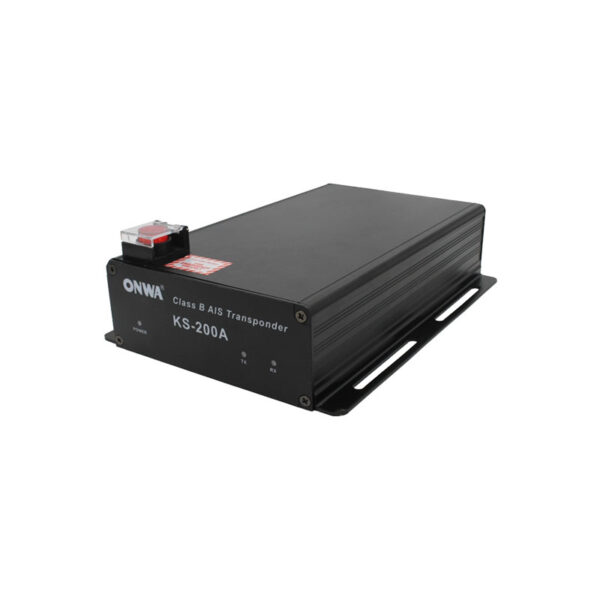

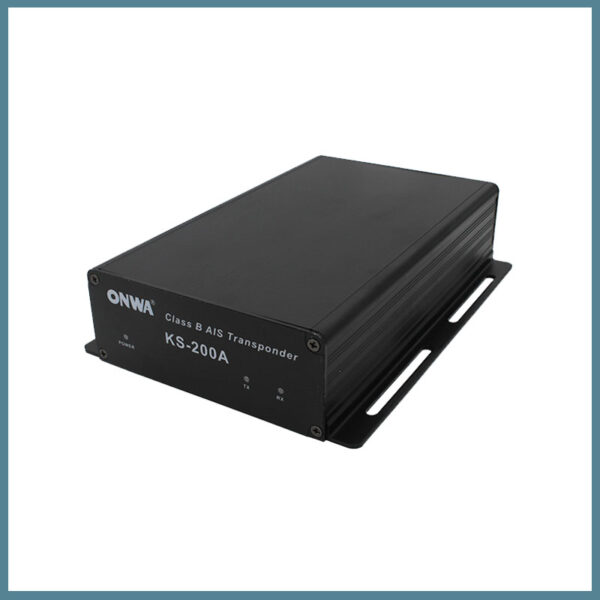

KS-200A KS-200A_SART

Class B+ AIS Transponder with optional AIS SART Button



FEATURES

The ONWA Class B+ AlS Transponder transmits and receves all data ofnearby targets around your boat (with suitable VHF Antenne)

2 4
3
LJT KS 200A

AIS Characteristics



Frequency Rate

156.025 MHz~162.025 MHz

Access Scheme

SOTDMA

Channel Bandwidth

25 KHz

Modulation

GMSK

Number of AIS Transmitter

1

Number of AIS Receiver

2

AIS Channel 1

CH 87B (161.975 MHz)

AIS Channel 2

CH 88B (162.025 MHz)

Tx Power Output

>5 Watt (37 dBm ± 1.5 dB)

RX Sensitivity

<-123dBm @ 20% PER

RX Message Format

AIS Class A and B messages

Comply Standard

IEC-62287 IEC 62287-2 Ed. 2.0:2017

NMEA



NMEA Sentence Supported

VDM, VDO, RMC, GSV, GGA, GSA

GPS Receiver (AIS Internal)

IEC61108-1 compliant

PHYSICAL



Dimension

207mm (length) x 155.8mm (Width) x 50mm (Height)

Weight

0.8kg

Power Supply

10 ~ 35 VDC; 0.35A nominal , 2A peak

Environment



Temperature

 -25°C to +55°C

Electrical Interface

RS232 38.4kbaud bi-directional
