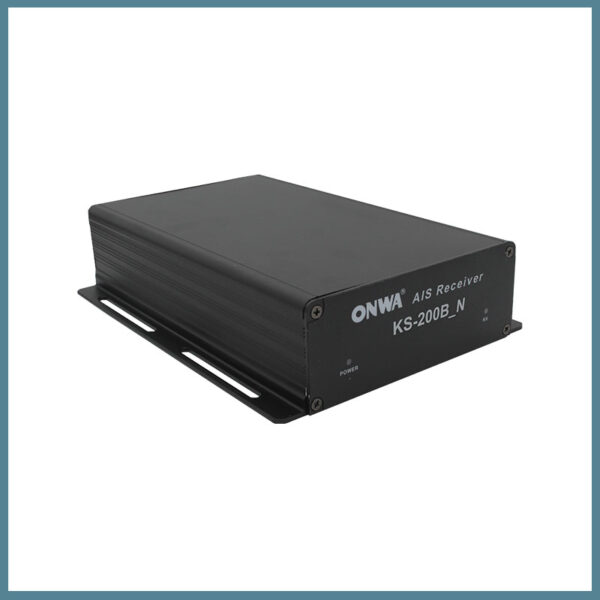

KS-200B

AIS Receiver Black Box

Product Feature

Features

  • Outputs AIS and GPS data on RS232 NMEA ports to other navigational equipment onboard
  • Can Receive AIS Data of targets around your boat (with suitable VHF Antenna)
  • Able to Interpret incoming AIS Data for CPA Alerts or AIS SART emergency messages

Specifications

 AIS Characteristics

Frequency Rate
156.025 MHz~162.025 MHz
Access Scheme
SOTDMA
Channel Bandwidth
25 KHz
Modulation
GMSK
Data Rate
9,600 bps
Number of AIS Receiver
2
AIS Channel 1
CH 87B (161.975 MHz)
AIS Channel 2
CH 88B (162.025 MHz)
RX Sensitivity
<-123dBm @ 20% PER
RX Message Format
AIS Class A and B messages
Comply Standard
IEC-62287 IEC 62287-2 Ed. 2.0:2017



 NMEA

NMEA Sentence Supported
VDM, VDO



 PHYSICAL

Dimension
207mm (length) x 155.8mm (Width) x 50mm (Height)
Weight
0.8kg



 Power Supply

10 ~ 35 VDC; 0.35A nominal , 2A peak

 Environment

Temperature
 -25°C to +55°C

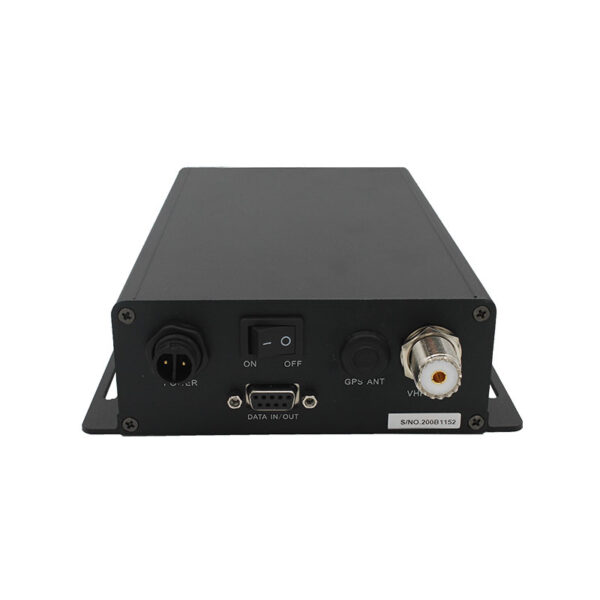

 Electrical Interface

RS232 38.4kbaud bi-directional



Optional Accessories


KA-159
VHF Antenna



Dimensions
